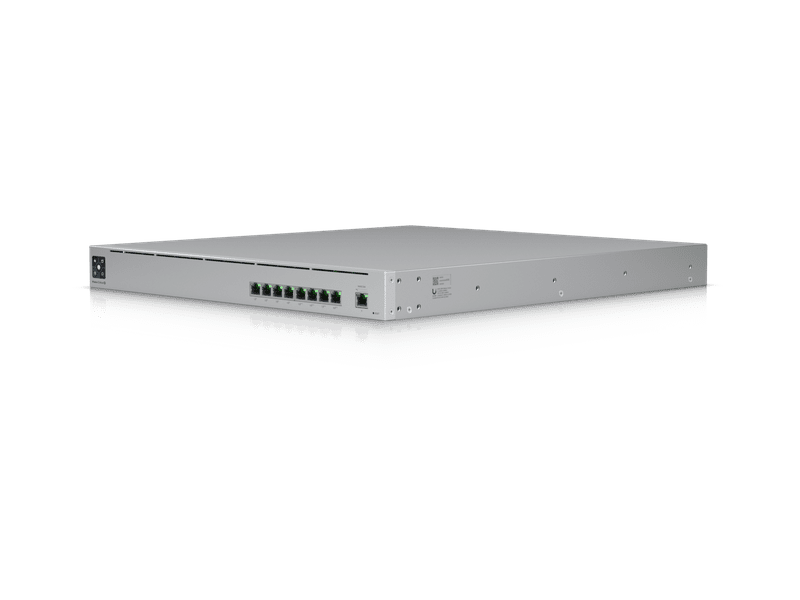

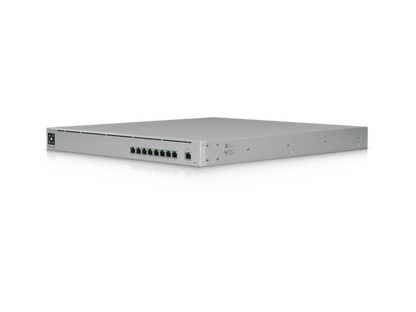

Ubiquiti UniFi Network Mission Critical 8-Port PoE 120W Switch
A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.
- (4) GbE PoE+, (4) GbE PoE++ ports
- (1) GbE port
- (2) 110V AC outputs; 120W total PoE available
- Battery backup power system
- Internal battery 368Wh
NEVER MISS A BEAT: UBIQUITI NETWORKS MISSION CRITICAL
Don't let power outages disrupt your critical network operations. The Ubiquiti Networks Mission Critical switch provides unwavering reliability. This robust solution integrates a seamless battery backup, ensuring uninterrupted power for up to 8 devices.
POWER THROUGH ANY OUTAGE: UBIQUITI NETWORKS MISSION CRITICAL
Safeguard your network's backbone with the Ubiquiti Networks Mission Critical switch. Featuring a built-in battery backup, it delivers seamless power even during outages. This dependable solution keeps your essential devices, like access points and security cameras, running smoothly, guaranteeing network uptime when you need it most.
UNINTERRUPTED POWER FOR CRITICAL DEVICES: UBIQUITI NETWORKS MISSION CRITICAL
The Ubiquiti Networks Mission Critical switch ensures your essential devices stay online, even during outages. This reliable switch features an integrated battery backup, providing continuous power for up to 8 devices. Ideal for access points, security cameras, and other network infrastructure that demands constant uptime.
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Supported rack depth | 700 to 1000 mm (27.6 to 39.4") |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (9) GbE RJ45 ports |
| PoE interface | (4) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz (1) External battery DC input 48V DC, 6A (1) Internal Lithium-Ion battery, 368Wh |
| Power supply | Universal AC input: AC/DC, internal, 240W External battery port: DC, external, 240W |
| Max. power consumption | 240W (Including PoE output) 50W (Excluding PoE output) |
| Total available PoE | 120W |

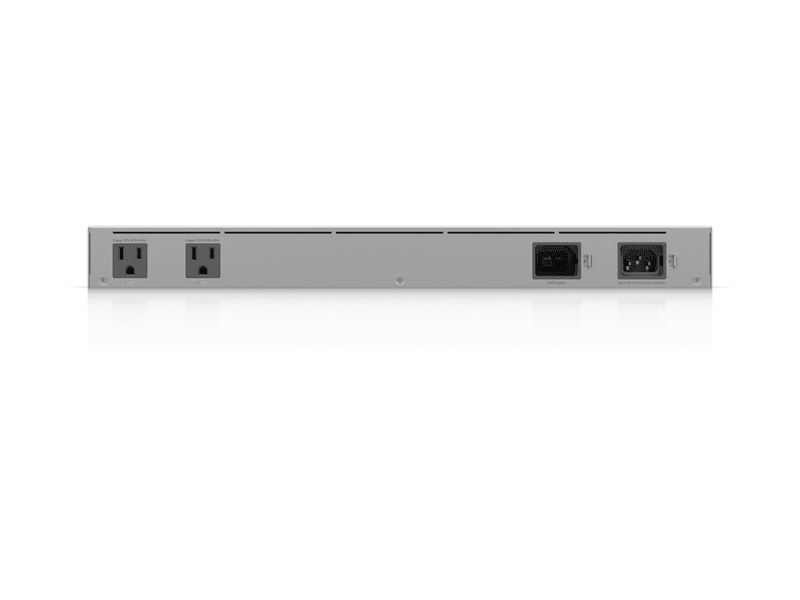

| Power output | US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz |
| Power output budget | 80W |
| Max. PoE wattage per port by PSE | PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+/PoE++ |
| Power output | Blue: active |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
