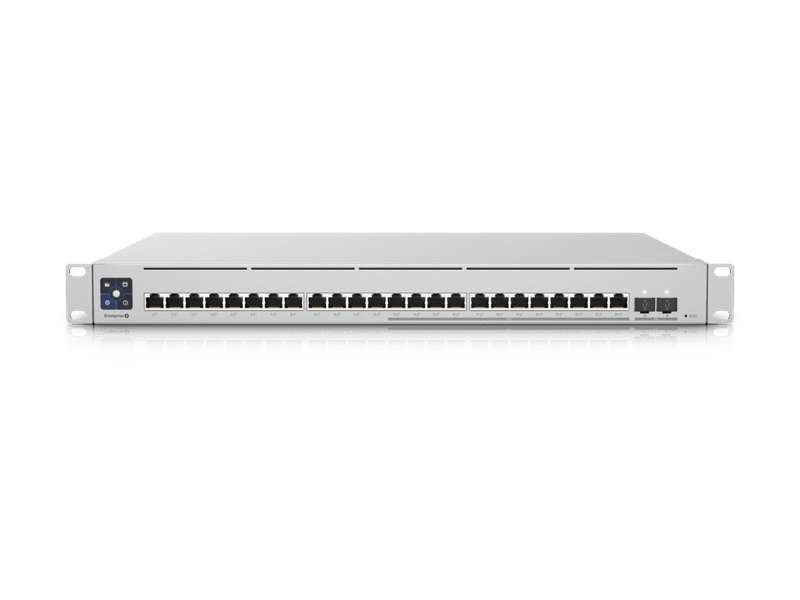

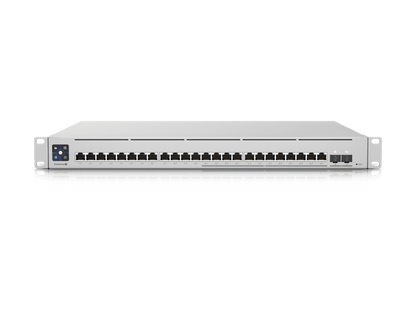

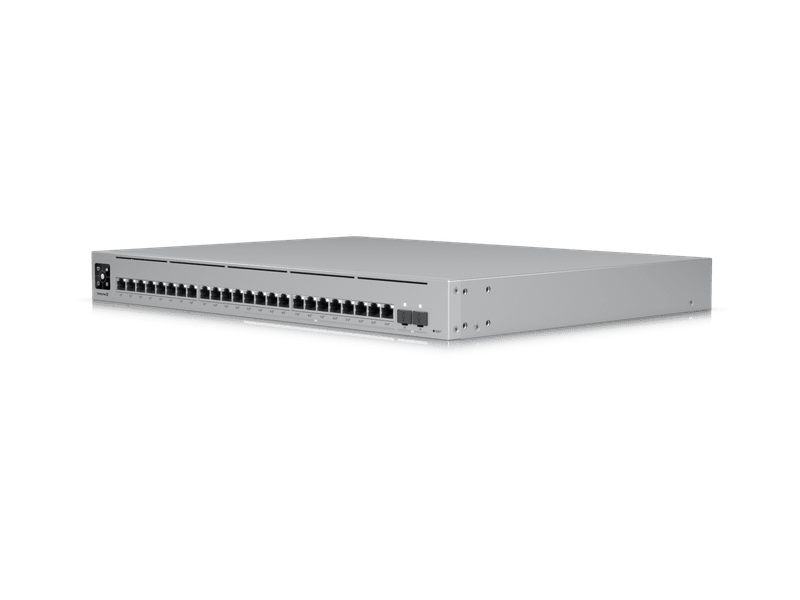

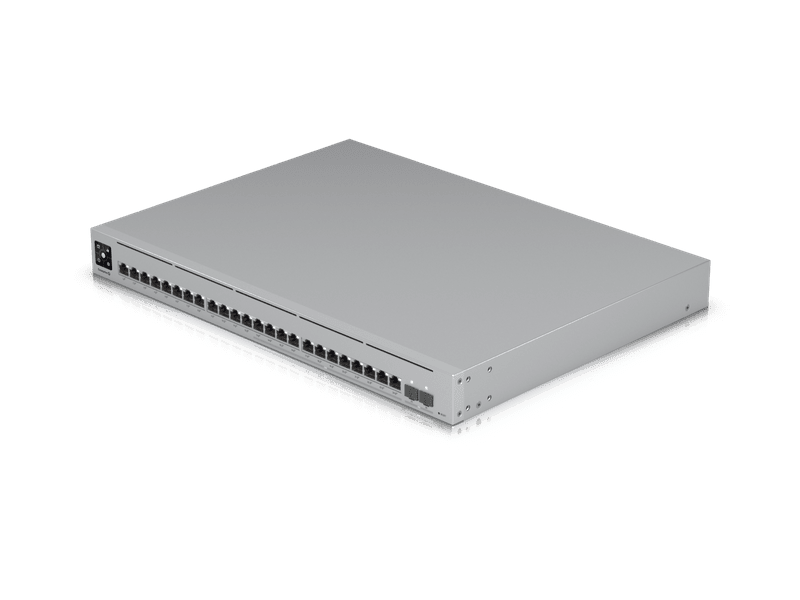

Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch

Name: Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch
Brand: Ubiquiti
SKU: USW-Enterprise-24-PoE
Price: 14601.0 MAD
Availability: OutOfStock

Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch

14 601 Dhs

~~0 Dhs~~ 14 601 Dhs

En vente Épuisé

Variantes de produits

Quantité

Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs

Garantie 7 jours retours
Commandez avant 12h00 pour une expédition sous 24h
Paiement à la livraison

Ubiquiti UniFi Enterprise 24 Port Gigabit PoE+ 400W Switch [USW-Enterprise-24-PoE]

Enterprise 24 PoE

USW-Enterprise-24-PoE (400W)

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

FEATURES:

(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3" touchscreen with AR switch management
UniFi SmartPower RPS DC input

Managed with UniFi Network Application Version: 5.14.12 or higher

Specifications

Mechanical
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports (12) 2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	62 Gbps
Switching capacity	124 Gbps
Forwarding rate	92.25 Mpps
Power method	(1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply	AC/DC, internal, 550W
Supported voltage range	100—240V AC
Max. power consumption	60W (Excluding PoE output)
Total available PoE	400W
Max. PoE+ wattage per port by PSE	34.2W
Voltage range PoE mode	PoE: 44— 57V PoE+: 50—57V
Services	SMB Layer 3 PoE GbE switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	Link/activity
SFP+	Link/activity
Application Requirements
UniFi Network	Version 5.14.12 and later
