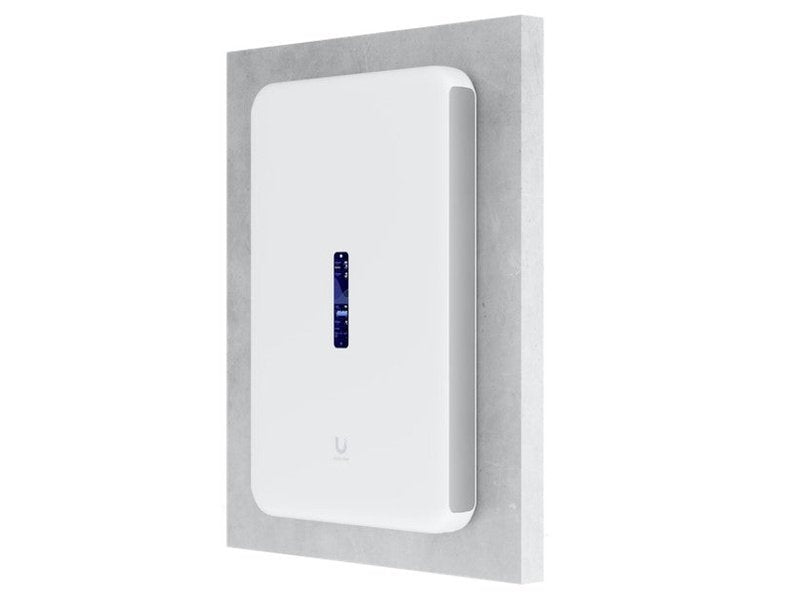

Ubiquiti UniFi DreamWall UDW All-in-One Internet Gateway

Overview

Wall-mountable Ubiquiti UniFi Gateway Console with a built-in high-speed access point, network video recorder, and PoE switch.

- Integrated Enterprise WiFi6 (4x4 MIMO)
- Full UniFi OS and UniFi application support
- 3.5+ Gbps routing

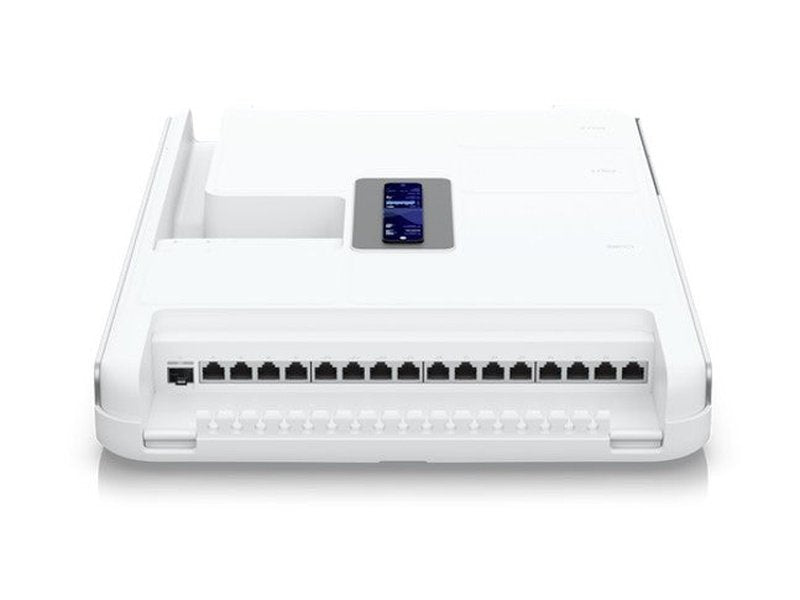

- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
- 4.7" touchscreen for management
- Integrated 128 GB SSD & pre-installed 512 GB microSD card

Specifications

Mechanical
Dimensions	549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight	8.6 kg (19 lb)
Enclosure materials	Polycarbonate, galvanized steel, aluminum alloy
Mount material	Stainless steel
Hardware
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card
Expansion slot	Micro SD memory card* *Requires a memory card with at least 128 GB of storage.
Management interface	Ethernet Bluetooth WiFi
Networking interface	(17) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port
SFP+ interface	(1) LAN: 10G SFP+ port (1) WAN: 10G SFP+ port
PoE interface	(4) PoE (Pair A 1, 2+; 3, 6-) (4) PoE+ (Pair A 1, 2+; 3, 6-) (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method	Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply	(2) Hot-Swappable AC/DC 550W PSU* *Comes with (1) pre-installed PSU.
Max. power consumption	532W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+/PoE++: 50—57V
Max. TX power 2.4 GHz 5 GHz	23 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	2 x 2 4 x 4
Throughput rate 2.4 GHz 5 GHz	300 Mbps 2.4 Gbps
Antenna gain 2.4 GHz 5 GHz	5.9 dBi 6 dBi
ESD/EMP protection	Air: ± 8kV, contact: ± 4kV
LCM display	(1) 4.7" touchscreen
Button	Factory reset
Mounting	Wall mount (included)
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and UID VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
LEDs
Ethernet	White: link/activity
SFP+	White: link/activity
PSU	Blue: ready Amber: failure
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
