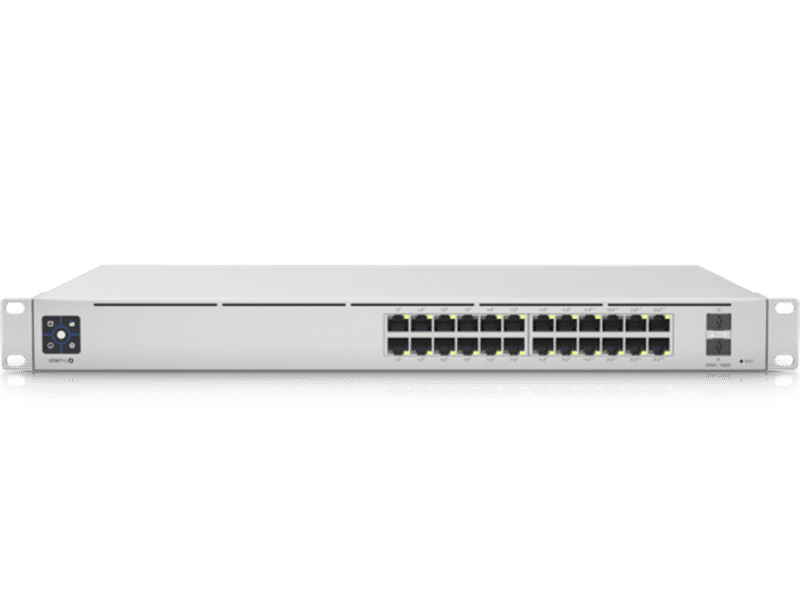

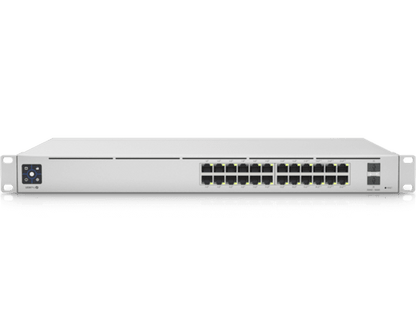

Ubiquiti UniFi USW-PRO-24-POE 24-Port Gigabit PoE+ 400W Switch Pro
Ubiquiti UniFi USW-PRO-24-POE 24-Port Gigabit PoE+ 400W Switch Pro
Impossible de charger la disponibilité du service de retrait
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
Note: Managed with the UniFi Network application: Version 5.10.5 and later
- (1) 1.3" LCM colour touchscreen with AR switch management
- (16) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE, 802.3bt PoE++ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Near-silent cooling
- Layer 3 switching features
Ideal Access Layer Switch
The Switch Pro 24 PoE is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
The Dual-WAN Gateway Pro offers an enterprise-grade firewall and a deep set of threat management features.
Operation mode (switching, mirroring, or aggregate) per port
Network/VLAN configuration
Jumbo frame and flow control services
Network settings
Storm control setting per port
Spanning tree configuration
802.1X control and RADIUS VLAN
Debug terminal option for command-line interface
Switching Evolved
Do UniFi Switches have Layer 3 functionality?
Yes, all UniFi Switch Pro and Enterprise models have Layer 3 switching features, including inter-VLAN routing, static routing, and DHCP.
Scalable UniFi Network Controller
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| PoE interface | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port by PSE | PoE+: 32W PoE++: 64W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.10.5 and later |
