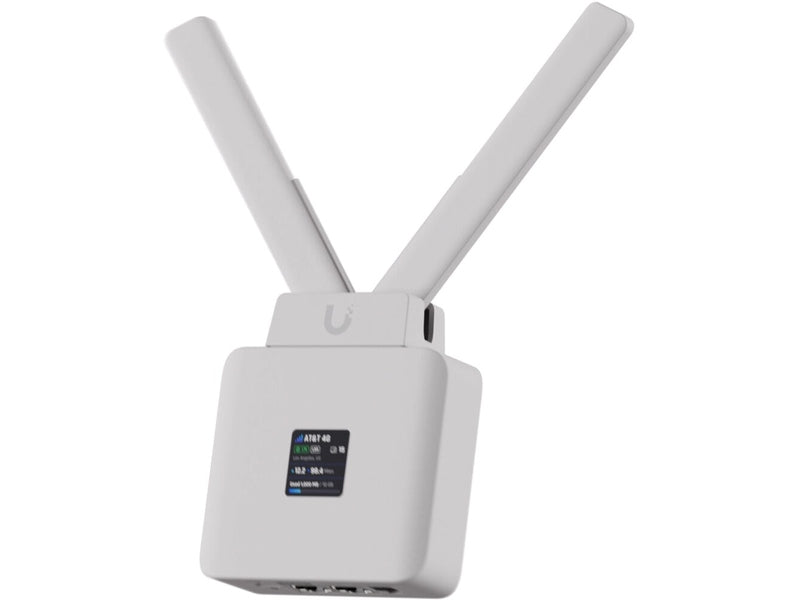

Ubiquiti UMR Mobile Router
Ubiquiti UMR Mobile Router
Impossible de charger la disponibilité du service de retrait
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
LTE category 4 mobile WiFi router
Pre-installed AT&T nano-SIM*
Site-to-site VPN and VPN client routing
Automatic failover between LTE and wired WAN
(2) GbE ports with (1) PoE output**
Powered using PoE, USB Type-C, or 4-pin DC power socket
Integrated GPS
Optional Mobility Cloud subscription***
*Works with the AT&T network in the United States. LTE data plan options with the pre-installed AT&T SIM are $15/month for 1 GB, $30/month for 5 GB, or $70/month for 20 GB of data, plus $15 for each additional GB. Bring your own AT&T SIM with device version 1.5.0 and later; update out-of-the-box using the pre-installed SIM's free trial or with wired WAN.
**PoE+ input required for PoE passthrough.
***Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for $2/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
Technical Specification
| Mechanical | |
|---|---|
| Dimensions | 220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1") |
| Weight | Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz) |
| Enclosure material | Polycarbonate |
| Mount material | Wall mount: polycarbonate DIN rail mount: steel |
| Hardware | |
| Processor | 74 Kc MIPS processor at 775 MHz |
| Memory | 128 MB DDR2 |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio WiFi 4 |
| Management interface | Ethernet WiFi |
| PoE interface | (1) PoE input (1) PoE output* (Max. 10W) *Requires a PoE+ switch. |
| SIM | Pre-installed AT&T data-only nano SIM |
| LTE bands | B2, B4, B5, B12, B14, B66 |
| Operator | AT&T network |
| LTE throughput speed* | Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location. |
| WiFi standards | 802.11 b/g/n, WiFi 2.4G, 20/40 MHz |
| GPS | Yes |
| Antennas | (1) External LTE antenna (main + aux) with TS9 male connectors (1) Internal WiFi 2.4 GHz antenna (1) Internal GPS antenna |
| Power supply | UniFi PoE switch (48—54V DC, 0.625A) USB Type-C (5V DC, 3A) 4-pin* ATX DC power socket (9V DC, 1A) *Please refer to the Installation Guide for power socket pinout. |
| Max. power consumption | 9W |
| LCM display | 1.3" screen |
| Button | Factory reset |
| Mounting | DIN rail/wall (Included) |
| Ambient operating temperature | -20 to 45° C (-4 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, AT&T |
| Supported WiFi Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
