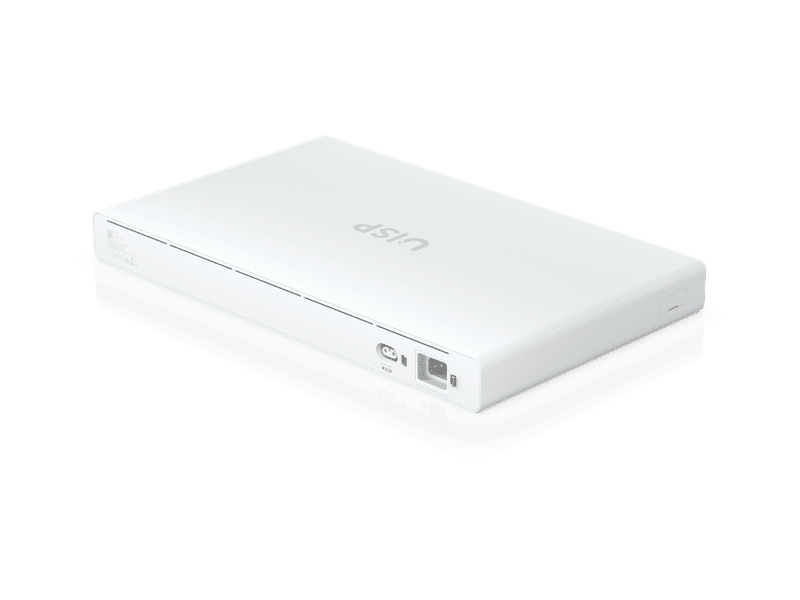

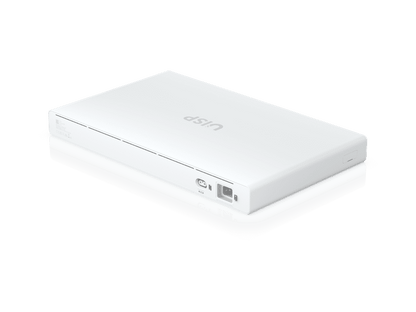

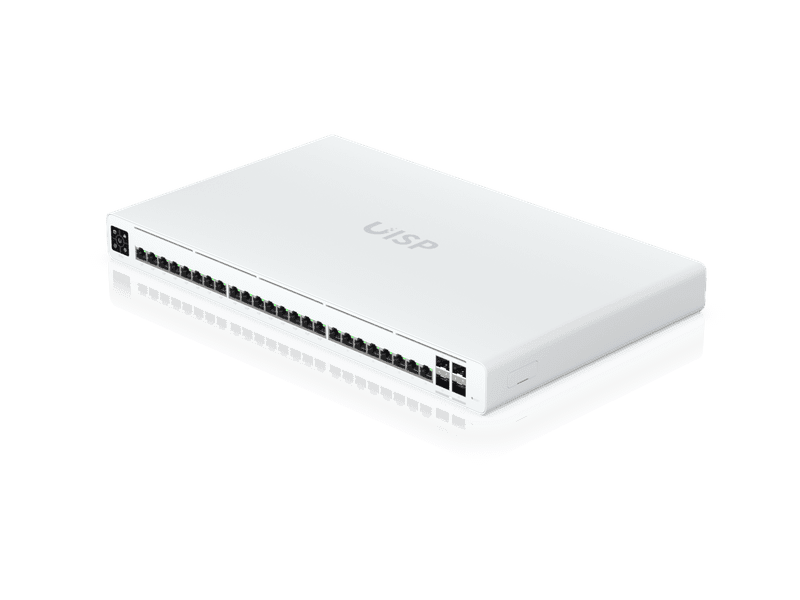

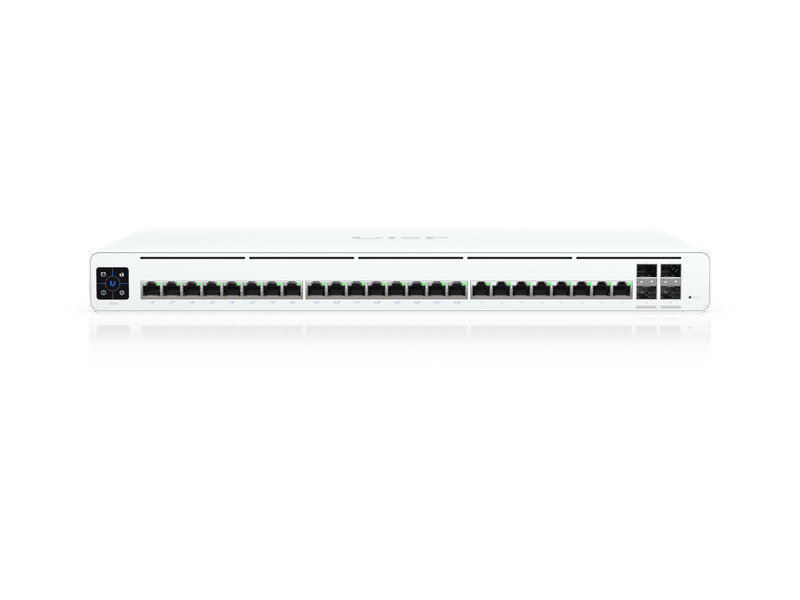

Ubiquiti UISP-S-Pro 24-Port Gigabit PoE 220W Switch Pro w/ 4xSFP+

220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

• (24) GbE RJ45 ports, including (16) with 27V passive PoE output
• (4) SFP+ ports
• 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
• Port isolation, speed limiting, and DHCP snooping functionality
• 1.3" LCM color touchscreen
• Additional Power TransPort input for DC redundancy
• Standalone management through local web interface* and UISP Application

 integration

*Available for switches updated to version 1.6.0 and later.

Specifications

Mechanical
Dimensions	442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
Weight	4 kg (8.8 lb)
Enclosure materials	SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Networking interface	(24) GbE RJ45 LAN ports (4) 1/10G SFP+ ports
Management interface	Ethernet In-band Bluetooth
Total non-blocking throughput	64 Gbps
Switching capacity	128 Gbps
Forwarding rate	95.23 Mpps
Power method	(1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz (1) Power TransPort DC input 27V DC, 9.3A
Power supply	AC/DC, Internal, 250W
Supported voltage range	100—240V AC
Max. power consumption	30W (Excluding PoE output)
ESD/EMP protection	Air: ± 15 kV, contact: ± 8 kV
LCM display	(1) 1.3" touchscreen
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
PoE
PoE interface	(16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE	220W
Max. passive PoE wattage per port	30W/27V DC
Passive PoE voltage range	27V DC
LEDs
RJ45 data ports	PoE Speed/link/activity
SFP+ data ports	Speed/link/activity
Software
Management application	UISP: Version 1.5.7 and later
