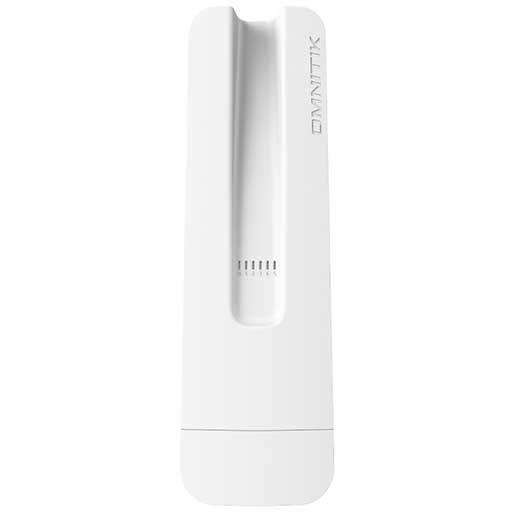

MikroTik OmniTik 5 ac 5GHz 802.11ac 2.5 dBi Gigabit Access Point w/ PoE Output US

OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

OmniTik 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It's equipped with a powerful 720MHz CPU, 128MB RAM, high power 1300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a newly designed weatherproof enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit. This PoE version also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It can power 48V devices (like IP cameras), if 48V input is used.

• CPU: QCA9557 720 MHz
• Memory: 128 MB
• Storage Type: Flash
• Storage Size: 16 MB
• Ethernet: Five 10/100/1000 Mbits/s Fast Ethernet port with Auto-MDI/X
• Wireless: QCA9892, wireless built-in 5 GHz 802.11ac, dual chain
• Frequency Range: 5170 - 5250 / 5725 - 5835 MHz
• Power Options: PoE input, passive 12-57 V
• PoE Out: Yes, Ether2 - Ether5
• Max Output per Port: 1A (if input < 30 V) / 0.5A (if input > 30 V)
• Consumption: 18 W
• Antenna Gain: 7.5 dBi
• Antenna Beam Width: 360°
• USB: 1 x USB type A
• Dimensions: 416 x 129 x 58 mm
• Operating Temperature: -40 to 70°C tested
• LEDs: 10x LEDs
• License Level: 4
• Operating System: RouterOS

(1)  MikroTik OmniTik 5 GHz ac AP w/ PoE

(1)  28V 2.57A Adapter

(1)  Pole Mount Bracket

(1)  Metal Ring

(1)  Gigabit PoE Injector

(1)  IEC Cord
