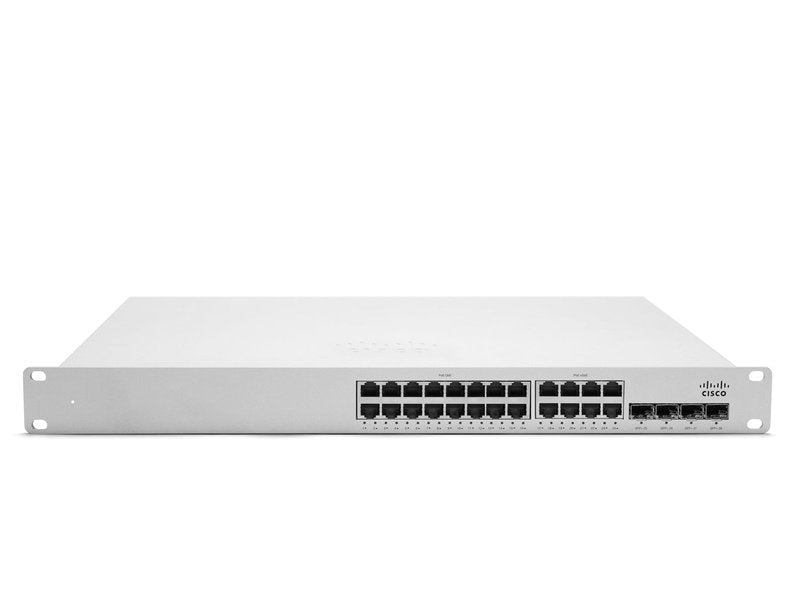

Cisco Meraki MS350 L3 Stackable Cloud Managed 24 Ports Manageable Ethernet Switch, UPoE

Highlights

Configurations
16 ports Gigabit Ethernet
8 ports 1000/2.5G/5G/10GbE MultiGigabit Ethernet
4 × SFP+ for 10G uplink, non-shared
160G Physical stacking
MS350-24X includes 740 W PoE / PoE+ / UPoE (60W per port)

Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Hot-swappable power supplies and fans
Ultra-reliable, includes lifetime warranty

Power over Ethernet
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
UPoE 60W per port
Maximum PoE output: 740W
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3
Dynamic routing (OSPFv2) *
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP) *
DHCP Failover

TECHNICAL SPECIFICATIONS

Interfaces
16 × 10/100/1000BASE-T Ethernet
8 × 10/100/1000BASE-T Ethernet with multigigabit capability up to 10 Gbps
(Multigigabit speeds determined by Ethernet cable type)
4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
2 × Stacking interfaces
48V DC 802.3af/802.3at/uPoE Power-over-Ethernet (PoE/PoE+/uPoE) on the MS350-24X models, available on all ports (maximum of 60W per port for uPoE)
Auto negotiation and crossover detection

Ethernet switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging with 4096 addressable tags
802.1D Spanning Tree Protocol (RSTP, STP)
802.1ab Link Layer Discovery Protocol (LLDP)
802.3ad link aggregation with up to 8 ports per aggregate
Broadcast storm control
IGMP snooping for multicast filtering
MAC forwarding table entries: 176,000

Security
Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security

Performance
Non-blocking fabric
432 Gbps non-blocking switching capacity
2.5 microsecond latency

Power over Ethernet:
802.3af/802.3at/UPoE Power-over-Ethernet (Maximum of 60W per port)
Maximum PoE output: 740 W
Pre-standard PoE: supports pre-standard PoE devices

Management
Managed via the cloud using the Meraki dashboard
Integrated with Meraki wireless, routing, and firewall management
No-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP and hostname fingerprinting
SNMP v2c
Seamless over-the-web firmware upgrades

Remote diagnostics
Email and text alerts
Live remote packet capture
Aggregated event logs with instant search

Scalable stacking
Unified configuration and monitoring of all switches
Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Physically stack up to 8 switches for added resiliency in high-throughput environments

Layer 3 capabilities
Static routing
Dynamic routing (OSPFv2)
DHCP Server and Relay
Warm spare (VRRP) with DHCP Failover

Power
Power input: 100-240 VAC, 47-63 Hz
Power consumption: 215-1655 W max

Environment
Operating temperature: 32°F to 113°F (0°C to 45°C)
Humidity: 5 to 95% non-condensing
Variable speed fans
MTBF (at 25°C)
321,515 hours

Warranty
Lifetime hardware warranty with advanced replacement included

Physical dimensions (H × W × D)
1.74" x 19.1" x 20.4" (4.44 x 48.6 x 51.8 cm) with power supply fitted
Weight: 12.85 lb (5.83 kg)
