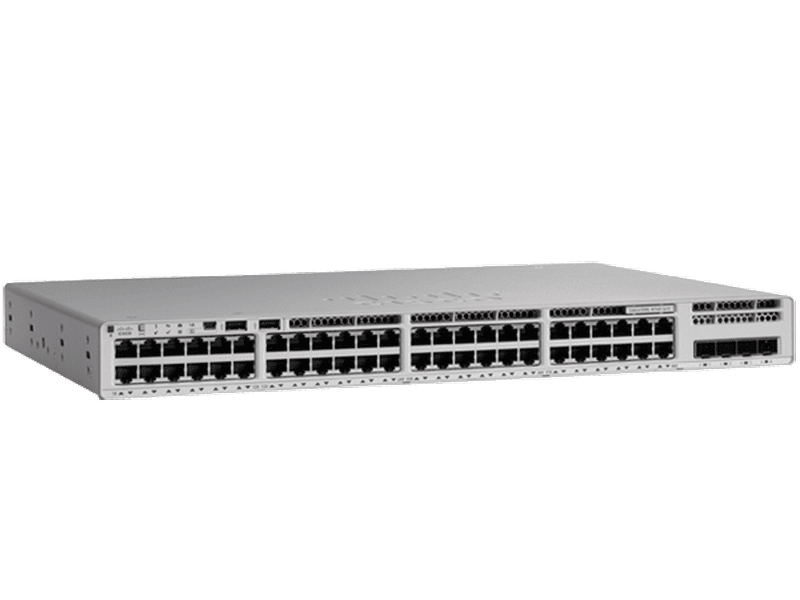

Cisco C9200L-48P-4X-E Catalyst 9200 48 Port Manageable Switch, PoE+, 4x10G, Network Essentials
Cisco C9200L-48P-4X-E Catalyst 9200 48 Port Manageable Switch, PoE+, 4x10G, Network Essentials
Partager
Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs
- Garantie 7 jours retours
- Commandez avant 12h00 pour une expédition sous 24h
- Paiement à la livraison
Cisco Catalyst 9200 48 Port PoE+ Manageable Switch w/ 4x10G, Network Essentials [C9200L-48P-4X-E]
Extend intent-based networking everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard.
Primary power supply | Available PoE power with single primary power supply only1 | Optional secondary power supply | Available PoE power with additional secondary power supply1 |
PWR-C5-1KWAC | 740W | PWR-C5-1KWAC | 1440W |
PWR-C5-715WDC= | 485W | PWR-C5-715WDC= | 970W |
Specifications
Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable |
Device Type | Switch - 48 ports - L3 - Managed |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
Performance | Stacking bandwidth: 80 Gbps ? Switching capacity: 176 Gbps ? Forwarding rate: 261.9 Mpps |
Capacity | Virtual networks: 1 ? MAC addresses: 16000 ? IPv4 routes: 11000 ? IPv4 routing table entries: 3000 ? IPv6 routing table entries: 1500 ? Multicast scale: 1000 ? ACL scale entries: 1500 ? FNF entries: 16000 ? Switched virtual interfaces (SVIs): 512 ? Queues per port (egress): 8 |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, VRRP, policy-based routing (PBR), MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
Features | EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Source-Specific Multicast (SSM), Blue Beacon LED, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Superior QoS, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 28.8 cm |
Weight | 5.5 kg |
Manufacturer Warranty | Limited lifetime warranty |
