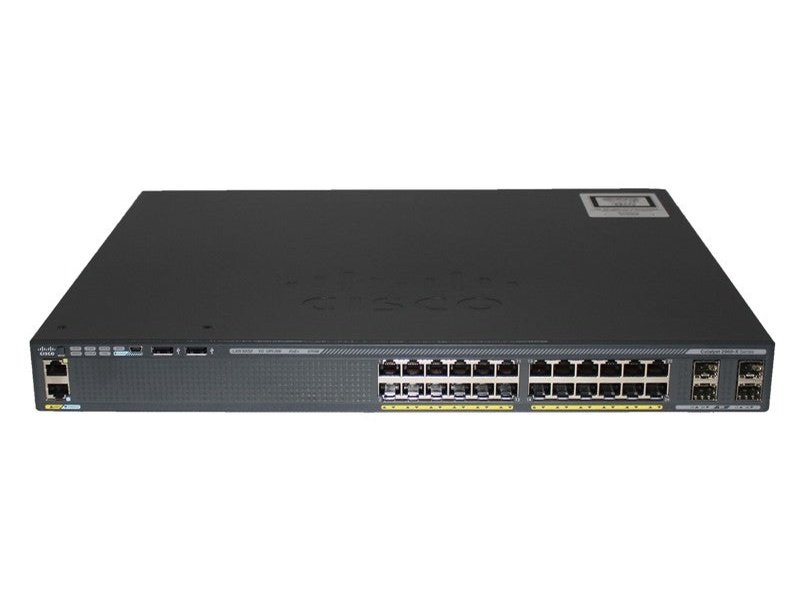

Cisco Catalyst 2960-X 24 Ports Manageable Ethernet Switch, PoE, 4x1G SFP, Lan Base

Overview


WS-C2960X-24PS-L
Cisco catalyst 2960X-24PS-L LAN Base stackable Layer 2 switch is comprised of 24 * 10/100/1000 Ethernet ports with POE+ and 4 * 1G SFP uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 30W per port.


Product Code
WS-C2960X-24PS-L

Enclosure Type
Rack-mountable - 1U

Feature Set
LAN Base

Uplink Interfaces
4 x 1G SFP

Ports
24 x Ethernet 10/100/1000 Gigabit ports

Available PoE Power
370W

Maximum stacking number
8

Stack bandwidth
80G

Forwarding Bandwidth
108Gbps

Switching Bandwidth
216Gbps

RAM
512MB

Flash Memory
128MB

Dimensions
44.5 cm x 36.8 cm x 4.5 cm

Package Weight
10.65 Kg




Specifications


Enclosure type
Rack-mountable - 1U

Ports
24 x 10/100/1000 + 4 x 1G SFP

Network management Interface
10/100 Mbps Ethernet (RJ-45)

Available PoE Power
370W

Forwarding bandwidth(Gbps)
108Gbps

Maximum stacking number
8

Stack Bandwidth
80G

Forwarding Performance
71.4Mpps

Switching bandwidth
216Gbps

Maximum active VLANs
1023

MAC Address Table Size
16K (default)

CPU
APM86392 600MHz dual core

RAM
512 MB

Flash Memory
128 MB

Status Indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed



Expansion / Connectivity

Console ports
USB (Type-B), Ethernet (RJ-45)

Stacking cable
Optional

Power Redundancy
Option (PWR-RPS2300)

Voltage range (Auto)
110V-240V

Power Consumption Operational
0.49KVA



Miscellaneous

Width
17.5 Inches (44.5 cm)

Depth
14.5 Inches (36.8 cm)

Height
1.75 Inches (4.5 cm)

Package Weight
23.48 Pounds (10.65Kg)

Weight
12.8 Pounds (5.8 Kg)

Rack Mounting Kit
optional

MTBF in hours
324,280

Compliant Standards
● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.3ae 10Gigabit Ethernet



System software / license

System software
IOS LAN BASE

License
NERGY-MGT-100-K9, EW-DO-100-DE

Features
●RPS Support
● Jumbo Frames
● VLANS
●Voice Vlan
●VTPv2
●CDPv2
●LLDP
● 802.3ad LACP
● PVST/PVST+
● 802.1W/802.1S
● Port Fast/Uplink Fast
● port CoS Trust and Override
● Scheduling
● Priority Queuing
● Configure CoS Priority Queues
● Weighted Tail Drop
● DSCP transparency


Network security
● SSH, SSL and SCP
● RADIUS and TACACS+
● SNMPv3 crypto
● 802.1x
● 802.1x Accounting / MIB
● 802.1x w/ port security
● 802.1x w/Voice VLAN
● 802.1x Guest VLAN
● 802.1x VLAN assignment
● 802.1x MAC-Auth Bypass
● BPDU/Root Guard
● Port Security
● Private VALN Edge
● Storm Control
● Block unknown unicast and multicast
● IGMP Snooping
● IGMP Filter/Throttle


Management and Troubleshooting
● Auto-MDOX
●TDR
● UDLD
● IP SLA Responder
● layer 2 / IP Traceroute
● SPAN
● RSPAN
● Express Setup
● Device Manager
● Cisco Network Assistant
● Smartports + Advisor
● Troubleshooting Advisor
● Drag-and-drop Cisco IOS Upgrade
● IP Address DHCP
● Autoinstall with saved configuration=
● Configuration Replace
● DHCP Auto Image Upgrade
● DHCP Port Based Allocation
●● Error Disable MIB



Environmental Ranges

Operating temperature up to 5000 ft (1500 m)
23ºF to 113ºF

Operating temperature up to 10,000 ft (3000 m)
23ºF to 104ºF

Short-term exception at sea level*
23ºF to 131ºF

Short-term exception up to 5000 feet (1500 m)*
23ºF to 122ºF

Short-term exception up to 10,000 feet (3000 m)*
23ºF to 113ºF

Short-term exception up to 13,000 feet (4000 m)*
23º to 104ºF

Storage temperature up to 15,000 feet (4573 m)
-13º to 158ºF

Operating altitude
Up to 10,000 feet

Storage altitude
Up to 13,000 feet

Operating relative humidity
10% to 95% noncondensing

Storage relative humidity
10% to 95% noncondensing
