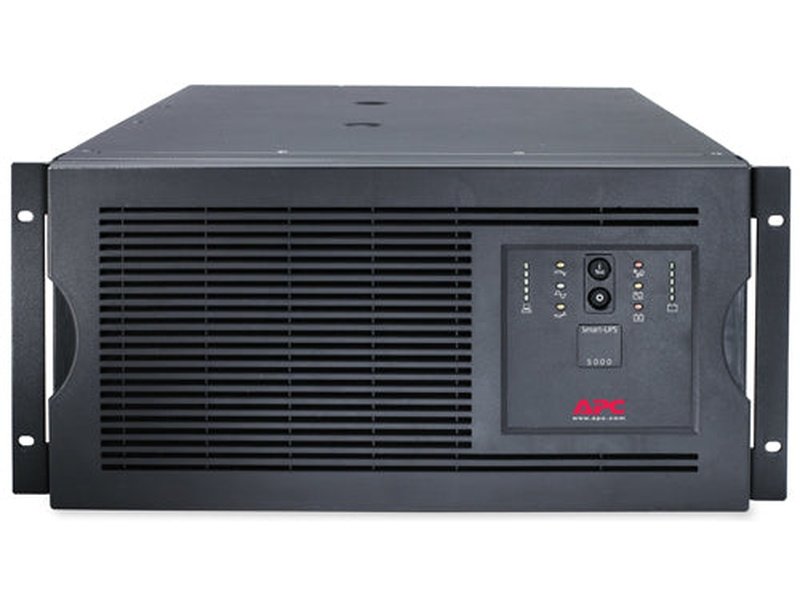

APC SMART-UPS (SUA), 5000VA, IEC(8), USB, SERIAL, NETWORK, LCD, 5U RACK/TWR, 2YR WTY

APC Smart-UPS 5000VA 230V Rackmount/Tower

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes : CD with software , Documentation CD , Installation Guide , Rack mounting hardware , Rack Mounting support rails , Smart UPS signalling RS-232 cable , User Manual , Web/SNMP Management Card

• Adjustable voltage-transfer points
  Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

• Audible alarms
  Provides notification of changing utility power and UPS power conditions

• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

• Boost and Trim Automatic Voltage Regulation (AVR)
  Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

• Cold-start capable
  Provides temporary battery power when the utility power is out.

• Disconnected battery notification
  Warns when a battery is not available to provide backup power.

• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

• Network manageable
  Provides remote power management of the UPS over the network.

• Rack/Tower convertible
  Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

• Resettable circuit breakers
  Enables a quick recovery from overload events.

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

• Serial connectivity
  Provides management of the UPS via a serial port.

• SmartSlot
  Customize UPS capabilities with management cards.

• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.


Output

• Output power capacity
  4.0 KWatts / 5.0 kVA
• Max Configurable Power (Watts)
  4.0 KWatts / 5.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load
  96.0 %
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal
• Other Output Voltages
  220, 240
• Topology
  Line Interactive
• Waveform type
  Sine wave
• Output Connections
  (4) IEC Jumpers (Battery Backup)
  (2) IEC 320 C19 (Battery Backup)
  (8) IEC 320 C13 (Battery Backup)


• Transfer Time
  2ms typical : 4ms maximum

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  Hard Wire 3-wire
• Input voltage range for main operations
  160 - 286V
• Input voltage adjustable range for mains operation
  151 - 302V
• Efficiency at Full Load
  96.0 %

Batteries & Runtime

• Battery type
  VRLA
• Typical recharge time
  3hour(s)
• Replacement Battery
  RBC55
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  2
• Battery Volt-Amp-Hour Capacity
  1632
• Runtime
  View Runtime Graph
  View Runtime Chart


Communications & Management

• Interface Port(s)
  DB-9 RS-232 , SmartSlot
• Pre-Installed SmartSlot™ Cards
  AP9630
• Control panel
  LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm
  Audible and visible alarms : configurable delays

Surge Protection and Filtering

• Surge energy rating
  480Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  222mm , 22.2cm
• Maximum Width
  483mm , 48.3cm
• Maximum Depth
  660mm , 66.0cm
• Rack Height
  5U
• Net Weight
  97.73kg
• Shipping weight
  106.82kg
• Shipping Height
  635mm , 63.5cm
• Shipping Width
  610mm , 61.0cm
• Shipping Depth
  762mm , 76.2cm
• Color
  Black
• Master Carton Units
  1.0
• Units per Pallet
  4.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  53.0dBA
• Online thermal dissipation
  430.0BTU/hr

Conformance

• Approvals
  C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE
• Equipment protection policy
  --
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
• PEP
  Available in Documentation tab
• EOLI
  Available in Documentation tab
• Battery Directive
  Compliant
• Other Environmental Compliance
  China RoHS
