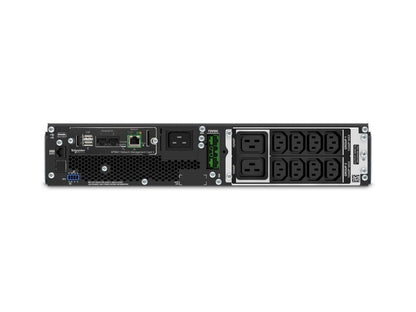

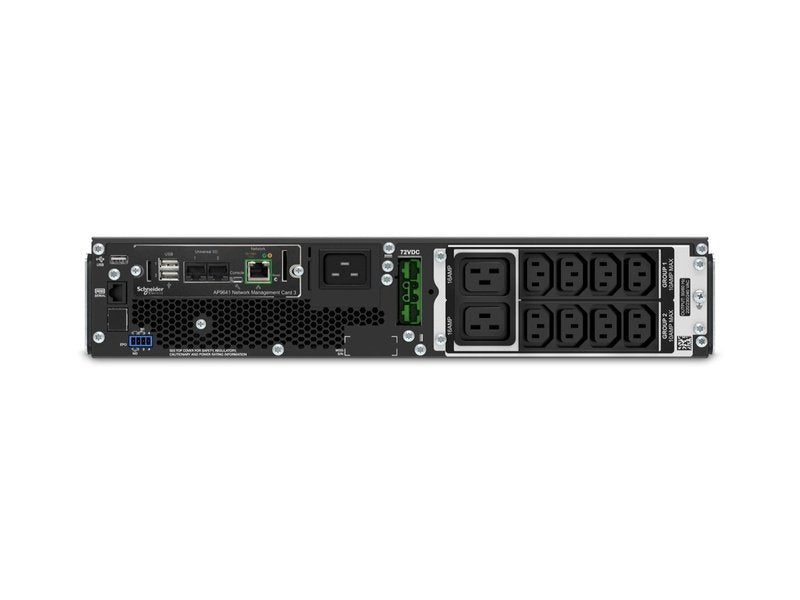

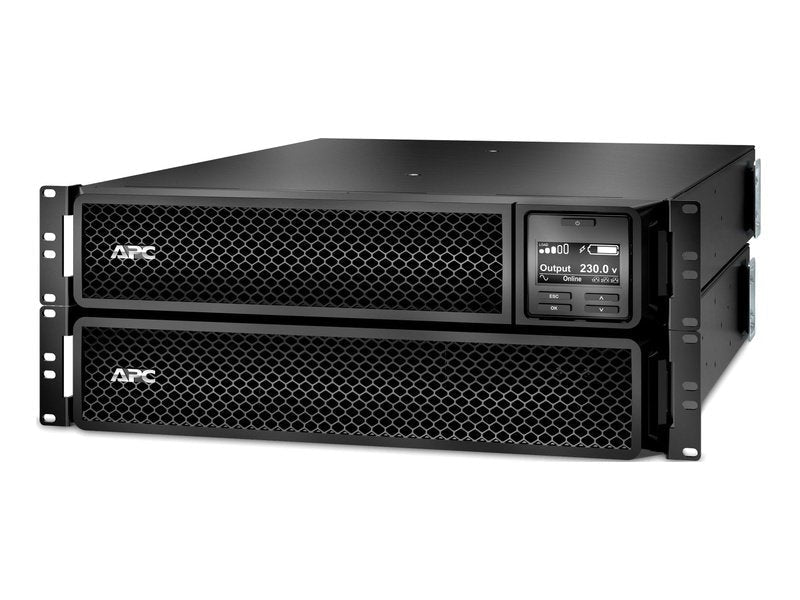

APC SRT2200RMXLI-NC Smart-UPS SRT 2200VA RM 230V Network Card

APC SRT2200RMXLI-NC Smart-UPS SRT 2200VA RM 230V Network Card

Prix habituel 46 046 Dhs
Prix habituel 0 Dhs Prix promotionnel 46 046 Dhs
En vente Épuisé

Livraison gratuite nationale pour toute commande supérieure à 1500 Dhs

  • Garantie 7 jours retours
  • Commandez avant 12h00 pour une expédition sous 24h
  • Paiement à la livraison

APC SMART-UPS SRT 2200VA RM 230V NETWORK CARD

High density, double-conversion on-line power protection with scalable runtime.This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 2200VA/1980W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rackmount SRT has a preinstalled Network Management Card in the Smart Slot for UPS network-based monitoring and management. PowerChute network shutdown provides graceful, unattended shutdown of critical IT equipment ranging from physical servers and virtual machines to HCI cluster. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 584mm (depth) x 85mm (height) x 432mm (width) and weighs 25.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Specifications

Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
output connection type 8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
Number of rack unit 2U
Cable length 2.44 m
Number of cables 1
Provided equipment CD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Network management card
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
USB cable
Warranty card
Run Time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Battery type Lead-acid battery
Number of battery filled slots 1
Number of battery free slots 0
Battery recharge time 3 h
Number of battery replacement quantity 1
Battery voltage 72 V
Battery charger power 122 W rated
Battery life 3…5 year(s)
Replacement battery APCRBC141
action_new_window
Extended runtime 1
UPS type Double conversion online
product web sub-family High density
Number of power module 1400
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Colour Black
height 8.5 cm
Width 43.2 cm
Depth 58.4 cm
Net weight 25 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
Two post mountable 0
USB compatible Yes
Mounting position Horizontal
Network frequency 40...70 Hz auto-sensing
Input voltage limits 100...275 V adjustable (half load)
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Wave type Sine wave
Harmonic distortion Less than 2 %
Crest factor 3 : 1
Bypass type Built-in bypass
product certifications CE
EAC
RCM
VDE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
heat dissipation 535 Btu/h
IP degree of protection IP20
Free slots 1
Preinstalled device Network management card 3 with environmental monitoring
Alarm Audible and visible alarms : prioritized by severity
Emergency power off Yes
Surge energy rate 340 J
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24.6 cm
Package 1 Width 81 cm
Package 1 Length 59.9 cm
Package 1 Weight 34.02 kg
