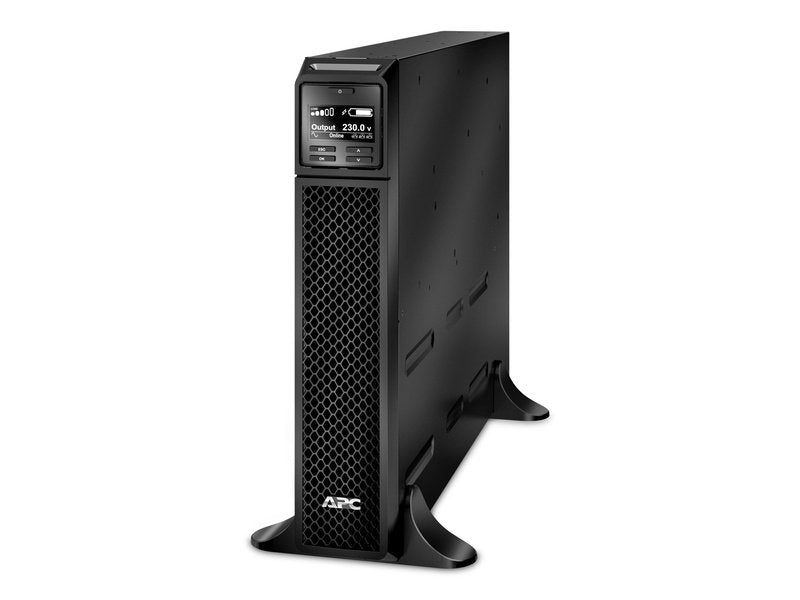

APC SMART-UPS (SRT), 1500VA, RM/TWR 230V, 3YR WTY

Overview

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Specifications

Output

Output power capacity
1.5kWatts / 1.5kVA

Max Configurable Power (Watts)
1.5kWatts / 1.5kVA

Nominal Output Voltage
230V

Output Voltage Distortion
Less than 2%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Load Crest Factor
3 : 1

Topology
Double Conversion Online

Waveform type
Sine wave

Output Connections
(6) IEC 320 C13 (Battery Backup)

Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V

Input frequency
40 - 70 Hz (auto sensing)

Input Connections
British BS1363A, IEC-320 C14, Schuko CEE 7/EU1-16P

Cord Length
1.83meters

Input voltage range for main operations
50-150 (40% Load), 80 - 150V

Number of Power Cords
1

Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules
1

Typical recharge time
3hour(s)

Nominal Battery Voltage
48V

Expected Battery Life (years)
3 - 5

Extendable Run Time
1

Extended Run Options
APC-Smart-UPS-SRT-1500VA-230V

Communications & Management

Interface Port(s)
RJ-45 Serial, Smart-Slot, USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)
Yes

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
432Joules

Physical

Maximum Height
432MM, 43.2CM

Maximum Width
85MM, 8.5CM

Maximum Depth
505MM, 50.5CM

Net Weight
20.5KG

Color
Black

Units per Pallet
12.0

Environmental

Operating Temperature
0 - 40 °C

Operating Relative Humidity
0 - 95 (non-condensing) %

Operating Elevation
0-3000meters

Storage Temperature
-20 - 50 °C

Storage Relative Humidity
0 - 95 (non-condensing) %

Storage Elevation
0-15000meters

Audible noise at 1 meter from surface of unit
50.0dBA

Online thermal dissipation
317.0BTU/hr

Protection Class
IP 20
