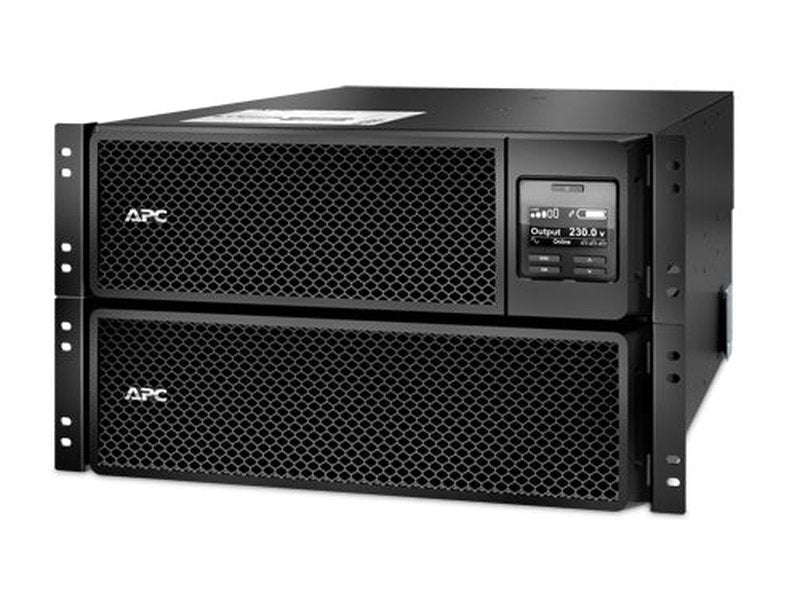

APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR

APC Smart-UPS SRT 10000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Output

Output power capacity
10.0 KWatts / 10.0 kVA

Max Configurable Power (Watts)
10.0 KWatts / 10.0 kVA

Nominal Output Voltage
230V

Output Voltage Distortion
Less than 2%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Load Crest Factor
3 : 1

Topology
Double Conversion Online

Waveform type
Sine wave

Output Connections
(3) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 320 C19 (Battery Backup)

Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V , 400V 3PH Input frequency 40 - 70 Hz (auto sensing)

Input Connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations
160 - 275V

Input voltage adjustable range for mains operation
100 - 275 (half load), 173 - 476 (half load)V

Other Input Voltages
220, 240, 380, 415

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time
1.5hour(s)

Replacement Battery
APCRBC140

Expected Battery Life (years)
3 - 5

RBC Quantity
2 Extendable Run Time 1 Battery Volt-Amp-Hour Capacity 1805

Extended Run Options
APC-Smart-UPS-SRT-10000VA-RM-230V

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)
Yes

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
480Joules

Physical

Maximum Height
263mm , 26.3cm

Maximum Width
432mm , 43.2cm

Maximum Depth
715mm , 71.5cm

Rack Height
6U

Net Weight
111.82kg

Shipping weight
130.0kg

Shipping Height
461mm , 46.1cm

Shipping Width
600mm , 60.0cm

Shipping Depth
1000mm , 100.0cm

Color
Black

Environmental

Operating Environment
0 - 40 °C

Operating Relative Humidity
0 - 95% non-condensing %

Operating Elevation
0-3000meters

Storage Temperature
-15 - 45 °C

Storage Relative Humidity
0 - 95% non-condensing %

Storage Elevation
0-15000meters

Audible noise at 1 meter from surface of unit
55.0dBA

Online thermal dissipation
1947.0BTU/hr

Protection Class
IP 20

Conformance

Approvals
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR
(EU), IRAM, RCM, VDE

Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant

REACH
REACH: Contains No SVHCs

Battery Directive
Compliant

Battery Notes
ts_Battery_Notes
