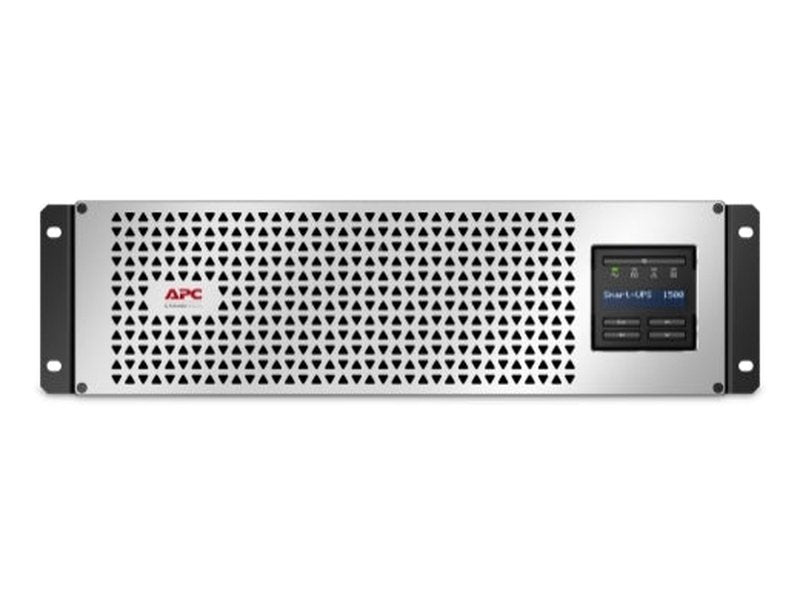

APC Smart UPS Lithium ION Short Depth 1500VA 230V With SmartConnect

APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect

SMTL1500RMI3UC Features

Run time for load 1350 W
- 5m

Max. Capacity Used
- 100%

Output power capacity
- 1.35kWatts / 1.5kVA

Rack Height
- 3U

Output Connections
- (6) IEC 320 C13 (Battery Backup)

Nominal Output Voltage
- 230V

Nominal Input Voltage
- 230V

Input Connections
- IEC-320 C14

APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect
- Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utility costs, generates less heat.

Lithium-ion battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Short-depth rack compatibility
Compact design fits comfortably in short-depth rack applications.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot
Customize UPS capabilities with management cards.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Serviceability
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Resettable circuit breakers
Enables a quick recovery from overload events.

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Manageability

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
Provides management of the UPS via a serial port.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Network manageable
Provides remote power management of the UPS over the network.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Availability
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Specifications

Brand Name:
- Schneider Electric

Manufacturer Part Number:
- SMTL1500RMI3UC

Manufacturer Website Address:
- http://www.schneider-electric.com.au

Manufacturer:
- Schneider Electric SA

Max Configurable Power (Watts)
- 1.35kWatts / 1.5kVA

Output Voltage Distortion
- Less than 5%

Output Frequency (sync to mains)
- 50/60Hz +/- 3 Hz

Other Output Voltages
- 220, 230, 240

Topology
- Line Interactive

Waveform type
- Sine wave

Transfer Time
- 6ms typical : 10ms maximum

Input frequency
- 50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations
- 160 - 286V

Number of Power Cords
- 1

Other Input Voltages
- 220, 240

Battery type
- Lithium Ion

Typical recharge time
- 3hour(s)

Expected Battery Life (years)
- 8 - 10

Battery Charge Power (Watts)
- 100Watts

Battery Volt-Amp-Hour Capacity
- 300

Control panel
- Multi-function LCD status and control console

Audible Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays

Available SmartSlot™ Interface Quantity
- 1

Surge energy rating
- 645Joules

Filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Maximum Height
- 131MM, 13.1CM

Maximum Width
- 438MM, 43.8CM

Maximum Depth
- 302MM, 30.2CM

RoHS
- Compliant

REACH
- REACH: Contains SVHCs

Battery Directive
- Compliant
